Fixed Misting Lines
Flexible, adaptable, always cool.
OZmist’s fixed misting lines are tailored to suit any space and budget, reducing temperatures by up to 10°C.
Request a quote today
1300 306 478
Hospitality, Factories, Warehousing, Agriculture, Public Spaces, Events
Staying Cool
Fixed Misting Lines refer to using our ultra fine nozzles placed at set intervals to deliver atomised mist for cooling and environmental control. The system provides a sleek, low-profile mist cooling solution that can be custom-configured to follow any design or layout.
Fixed Misting Lines are fabricated from 304 Grade Stainless Steel tube which is precut and machined to length in our workshop; or a semi rigid high pressure nylon tube which is supplied in rolls and cut to length on site. Both systems are easy to install, economical to run and can be fitted with cycle timers, thermostats to further automate. The evaporated mist disperses without any drips or wet floors. All OZmist systems are powered by a high pressure pump that mains water to 1000psi/70 bar.
Fixed Misting Lines are a simple & effective method to cool most outdoor & semi-enclosed spaces by at least 10°C. Perfect for hospitality venues, commercial and public spaces, cool zones for brand activations, as well as livestock sheds, industrial worksites and HVAC / condensor pre cooling.

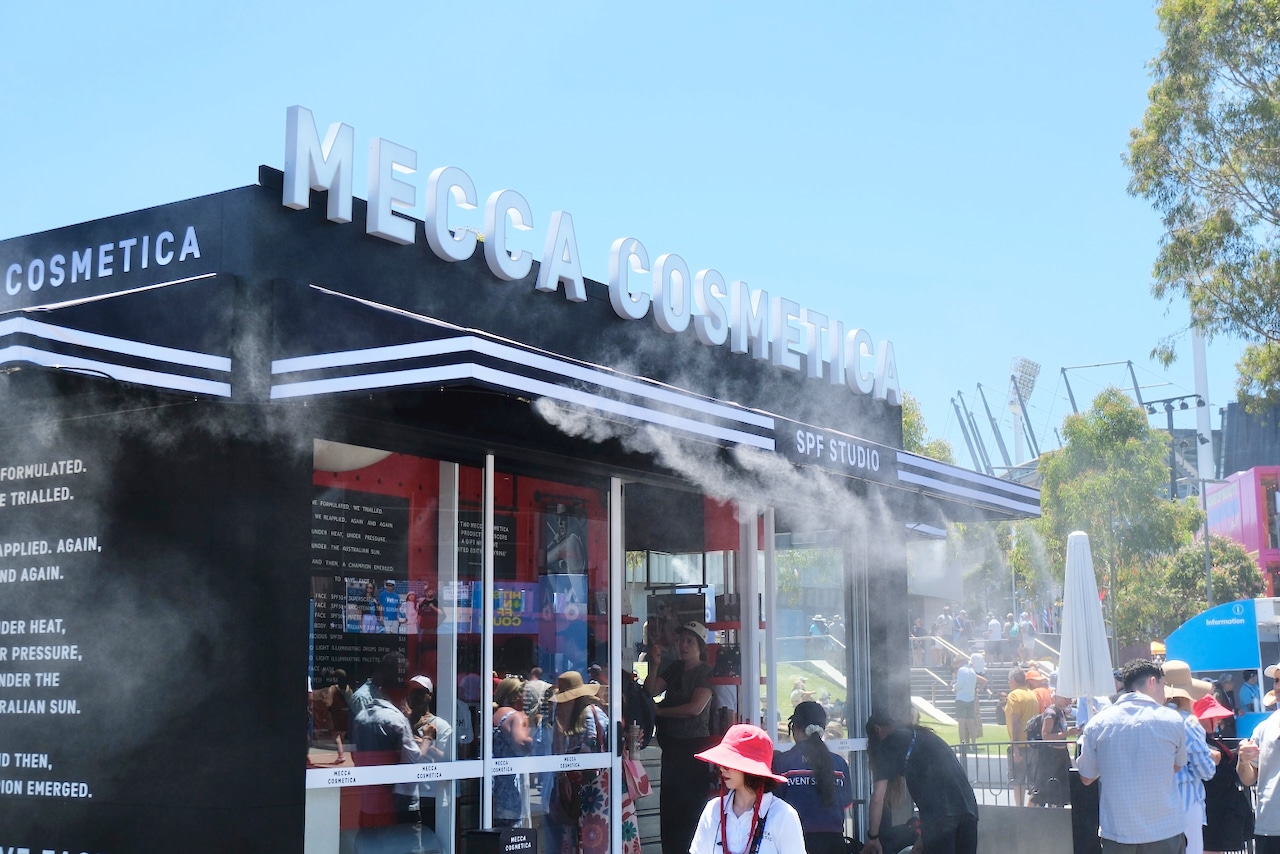

Our misting lines feature regularly at major events like the Australian Open and Woodford Festival.
About Misting Lines
Mist Lines provide ultra-fine misting without leaving wet areas, making it the ideal solution for both cooling and industrial uses.
Flexible and adaptable to suit any space, mist delivered through nozzles spaced along rigid or semi-flexible tubing. Height and layout can be adjusted for maximum effect, indoors or outdoors.
Make your hospitality venue the coolest place in summer, provide memorable crowd engagement installations at events, or lower temperates and control environments essential to productivity, livestock cooling and hygiene.
Commercial &
Alfresco Venues
Events &
Public Spaces
Industrial, Farms
& Livestock
Misting Lines Range
Nylon Misting Lines
Our Nylon Static Misting Lines are constructed from high-pressure nylon tubing, supplied in 25-meter or 100m rolls.
Most applications are done in 3/8” along with all matching hardware, elbows, tees, compression fittings & nozzles to suit. 1/4” & 1/2“ diameters are also available. Nylon tubing is highly flexible, allowing it to be routed easily and quickly cut to size. All mist lines would connect back to a suitable OZmist pump module to provide 1000psi pressure, volume and flow rate required.
Screw in nozzles are non drip, and tubing is fixed to surfaces or cabling to keep neat and tidy, it’s really that easy!
Stainless Steel Misting Lines
Quick Fit systems use OZmist’s stainless steel tubing & components,perfectly suited to exposed outdoor alfresco venues, restaurants and rooftop bars. Each system includes pre-cut, precision-machined 304-grade stainless steel tubing with matching hardware to make installation simple and fast.
Push the tube into the fitting and tighten the grub screw. The internal O-ring ensures a secure, leak-free seal. Delivery line from the high pressure pump is run in continuous tubing.
Pre assembled kits are available in all sizes, based on 750mm nozzle spacing, or we can adjust as required.
Standard tube lengths include 500mm, 750mm, 1m, 1.2m, 1.5m & 3m with custom sizes available on request.
If you have any specific requirements in mind and require a site visit or would like to discuss which system would suit you best, talk to an expert 1300 306 478.
Trusted in over 1,000 locations.
If you’d like to know how we can keep your site dust free contact us today.
