Fixed Misting Lines
Referred to as either Mist Lines, Fixed System or Static Misting System, the same approach is used whether for cooling or industrial applications.
Mist Lines consist of having individual Misting Nozzles fitted at required intervals along rigid or semi-flexible tubing.
Fixed or static lines can have junctions, tee’s, branches or any design to follow building layout that’s required, for instance around a beer garden space, shopping centre outdoor precinct, along eaves, roof trusses of a factory or warehouse, or to machinery etc etc. A tailor made approach, this provides the delivery for the ultra fine water droplet and solution that’s required. Playground Misting in Australia is also very popular, and OZmist supply to many public spaces & installations to feature water mist to the project.

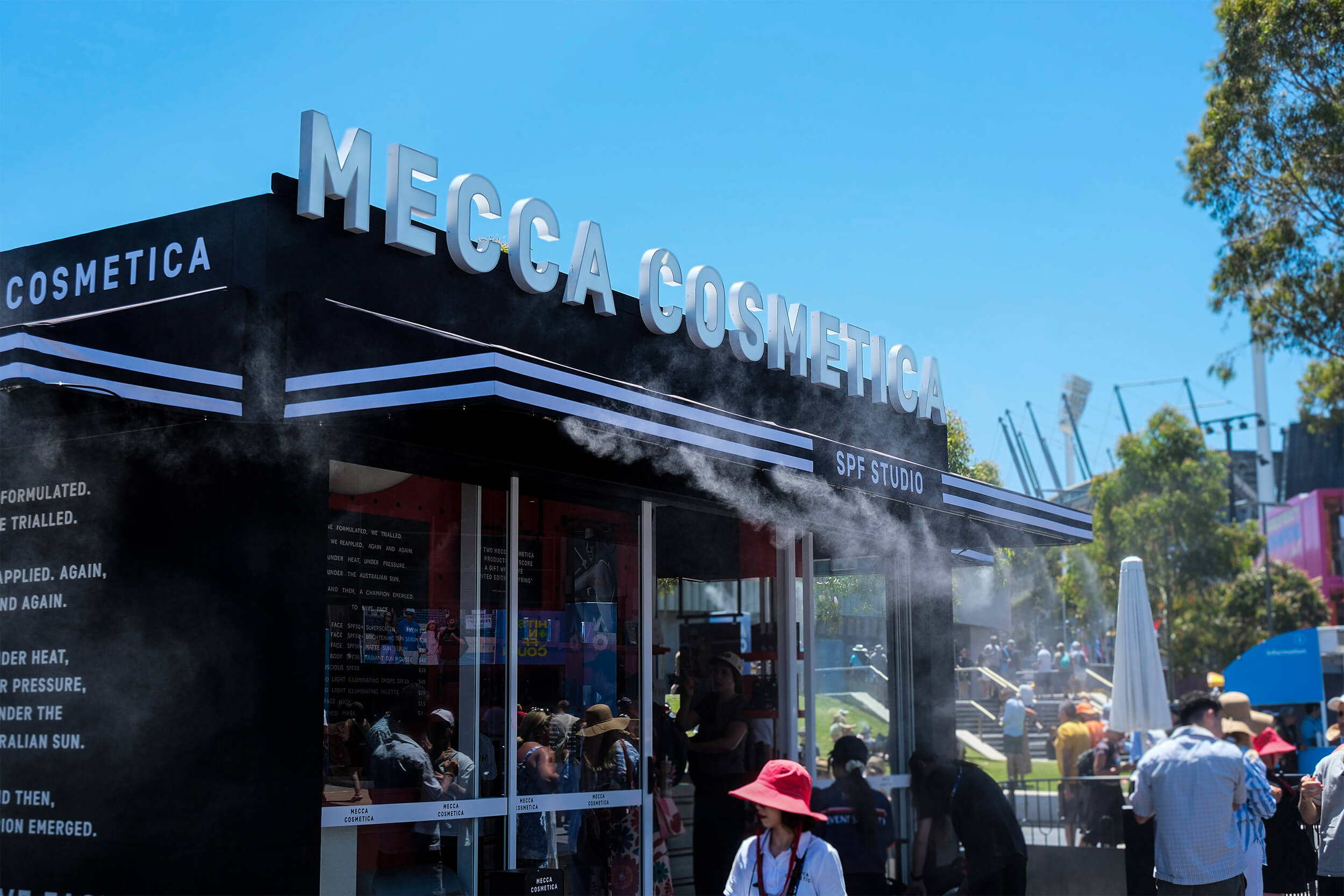

For alfresco cooling jobs such as Strato Bar in Melbourne, Sunsets Rooftop in Brisbane, or Park Lane in Everton Plaza Queensland, we used our stainless tubing for it’s easy installation, neatness, longevity and stylish appearance.

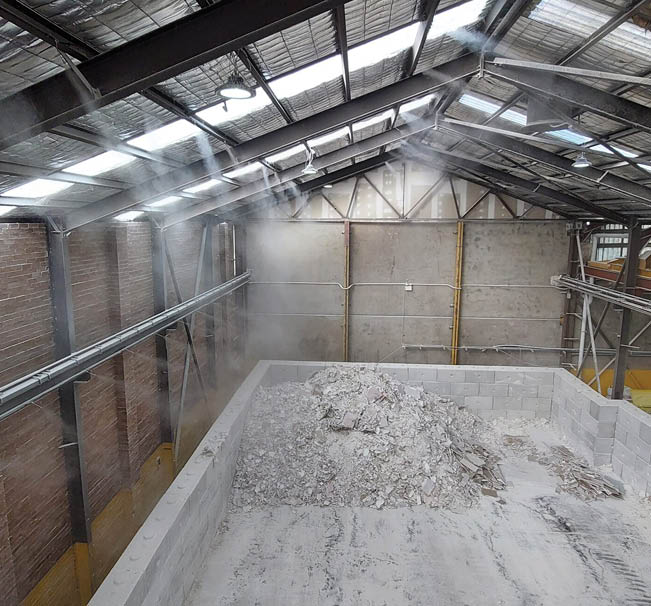

Industrial applications for mist is more for worksite dust suppression and odour suppression and EPA and government worksite regulations. We steer towards our semi rigid nylon line, factoring in the scale of the site, amount of mist coverage and outcome required to support operations etc.
As with all our high pressure systems, water supply is via one of our High-Pressure Pump Modules that gives that 1000psi pressure required for the mist droplet to be ultra fine. Then depending on the situation, fixed lines can be used exclusively or in conjunction with fans connected to the same pump.
Features
Mist Line
- Incredibly simple to install, procedure is the same whether it is a 15m kit for a cafe, or a 300m industrial waste facility.
- Effective mist formula, a system running at 1000psi or 70bar with standard 0.2mm nozzles will blanket mist 3m from each nozzle.
- With a large number of fittings available for either Push lock and Quick Fit we can design a system for almost any location.
- OZmist’s 0.2mm nozzle creates millions of tiny 10 micron droplets, low flow rate for such a high surface area & therefore so effective for cooling, dust suppression and containing pungent odours!
Specifications
Yes, if no high-Pressure Pump is used regular mains pressure will not have sufficient force to open the orifice on our 0.2mm Nozzles and will dribble water and wet the surrounding area.
We would recommend that our Static Tube be installed on solid material to ensure that vibrations from the Pump are not amplified through the tubing. If installing to Thin or Hollow material it can be better to install Catenary Wire to isolate the Static Tube from any structures.
Benefits
- Simple Installation, fixed in a set position with no moving parts. Once installed it does not have to be touched again.
- Drip Free, no wetting of objects, floors or materials when running a high-pressure pump.
- Quiet Operation, pumps can be located where ever suits, with tubing to connect the system.
- Adaptable, can be installed to surfaces with our nylon coated tube saddles or hung from cabling or wire.
- A very effective way to suppress dust in environments such as waste & recycling, around crushing machinery, processing, quarries & mining, demolition and construction.
- Works seamlessly with our odour suppression modules and our insect repellant systems.
- Discreet, low profile and targeted. Mist lines are efficient and can get mist to where it’s most needed.
- Versatile, lines can be branched off for different purposes or zones, ie cooling patrons on a restaurant balcony, aswell as condenser cooling, all from the 1 pump.
our cooling solutions will help you deliver safer, more enjoyable environments.
