Misting Fans Range

FSD Outdoor Mist Fans

Our new FSD2460 range and are our highest spec fans to date, IPX55 rated motors while the fans are treated first with an electrodip coating to provide a corrosion-resistant primer, followed by a powder coat (black gloss) top coat to give superior durability as well an attractive finish.

They feature 4 blades and a 6-nozzle mist ring, low noise operation yet powered by our high pressure pumps for fast evaporation.

Request a quote

Back to range

Features

Specifications

Dimensions: Length: 660mm Width: 660mm Height: 300mm

Water Tank Capacity: N/A

Weight: Dry Weight: 17kg (per Fan with Stainless Steel Mist Ring)

Flow Rate: With Stainless Steel Misting Ring 1 x Fan @ 1000psi = 0.336L/pm

Transport: N/A

Generator: 230V / 50Hz
0.57A
127W

Speed Max: 3 Speed Levels:
Low
Medium
High

Additional information:
Each Fan has an inline controller with three adjustable speeds to choose from that when not in use slides into the rear of the motor. The Oscillation can be toggled by push/pull switch on top of the Fan Motor.It is possible to purchase a KTW Fan without the Stainless Steel Misting Ring and fit one of OZmist’s Low-Pressure Misting Rings instead. It must be noted that the Low-Pressure Mist Rings can cause wetting on some surfaces.

Download brochure

Want to know what the right Mist Fan is for you? Talk to an expert today and we’ll help you find the perfect solution.

1300 306 478

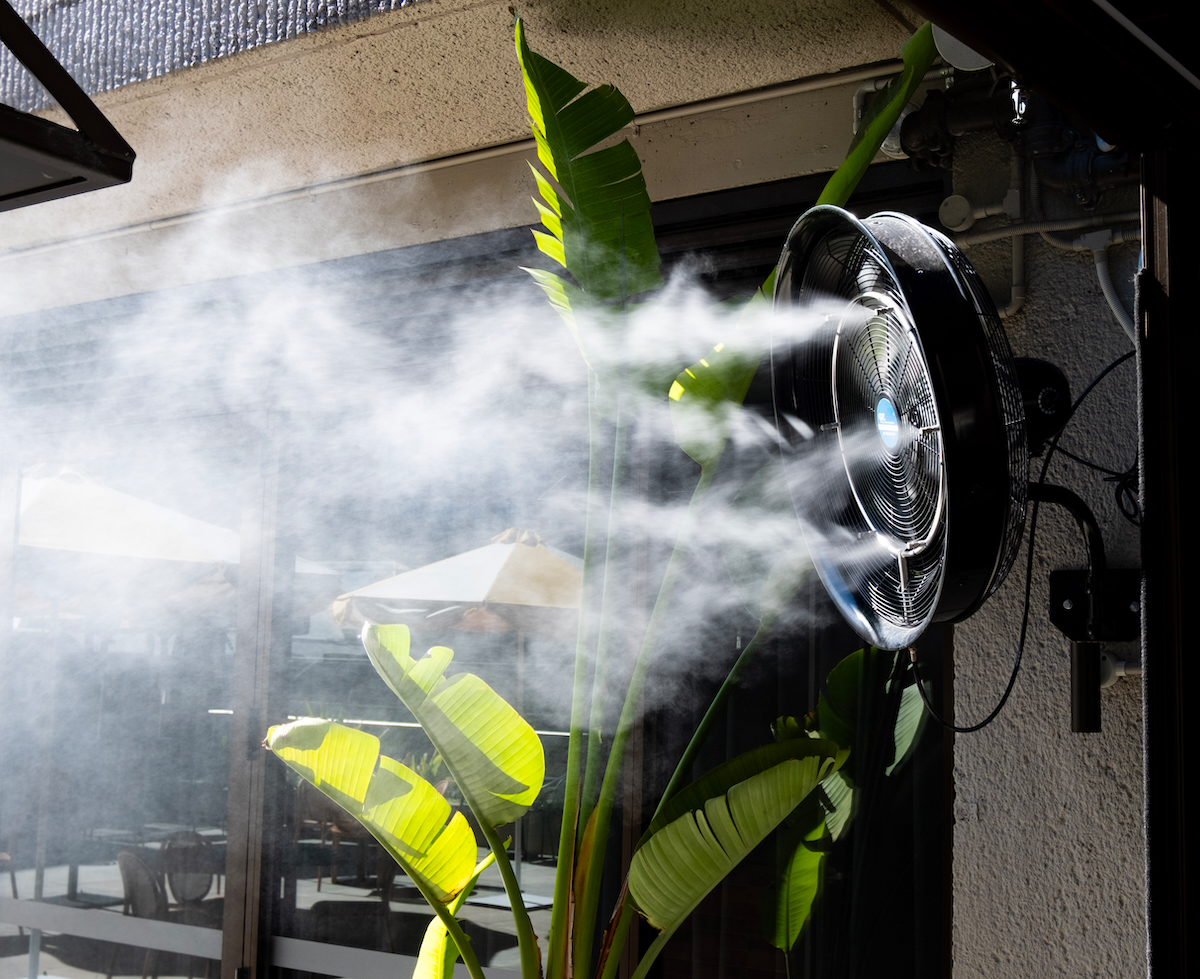

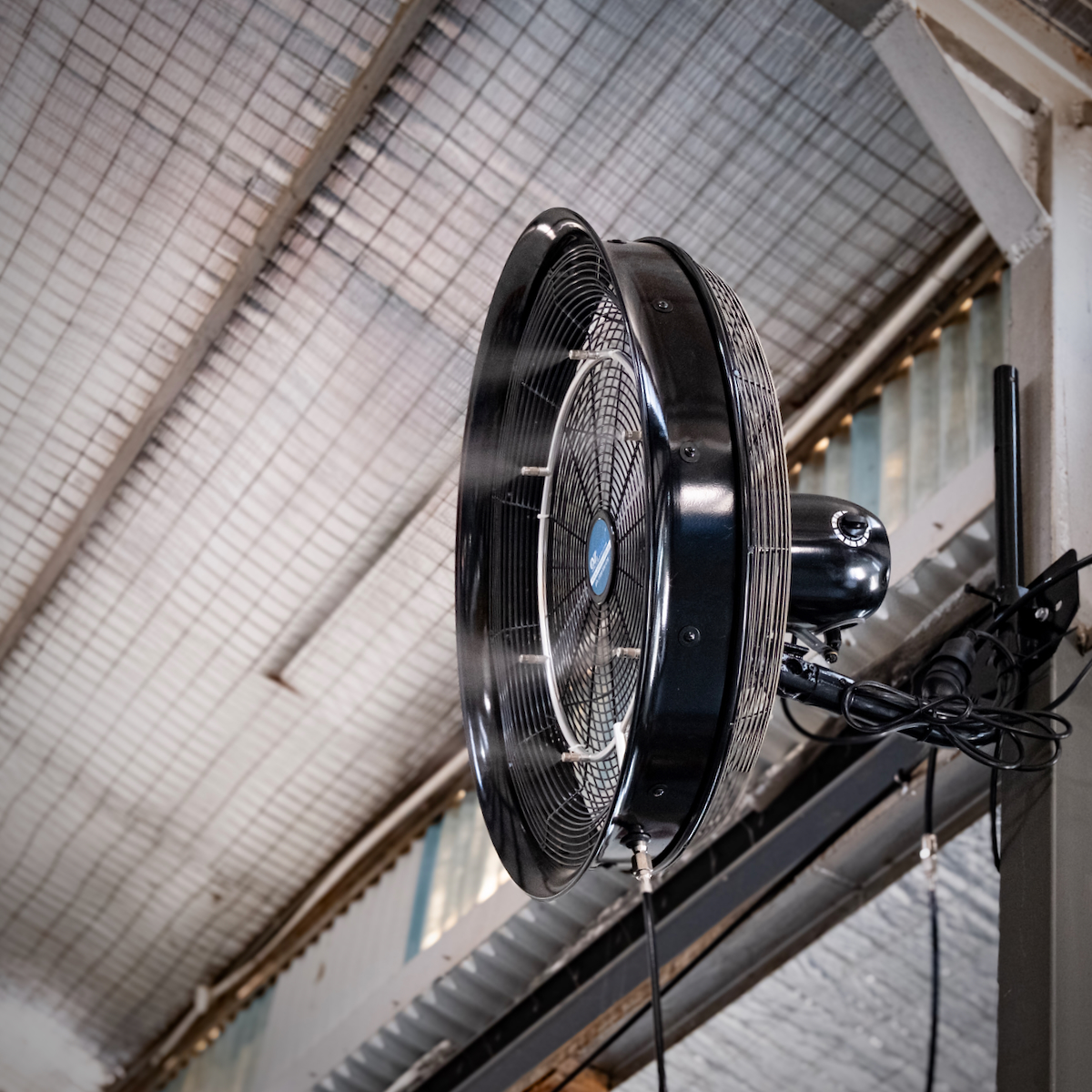

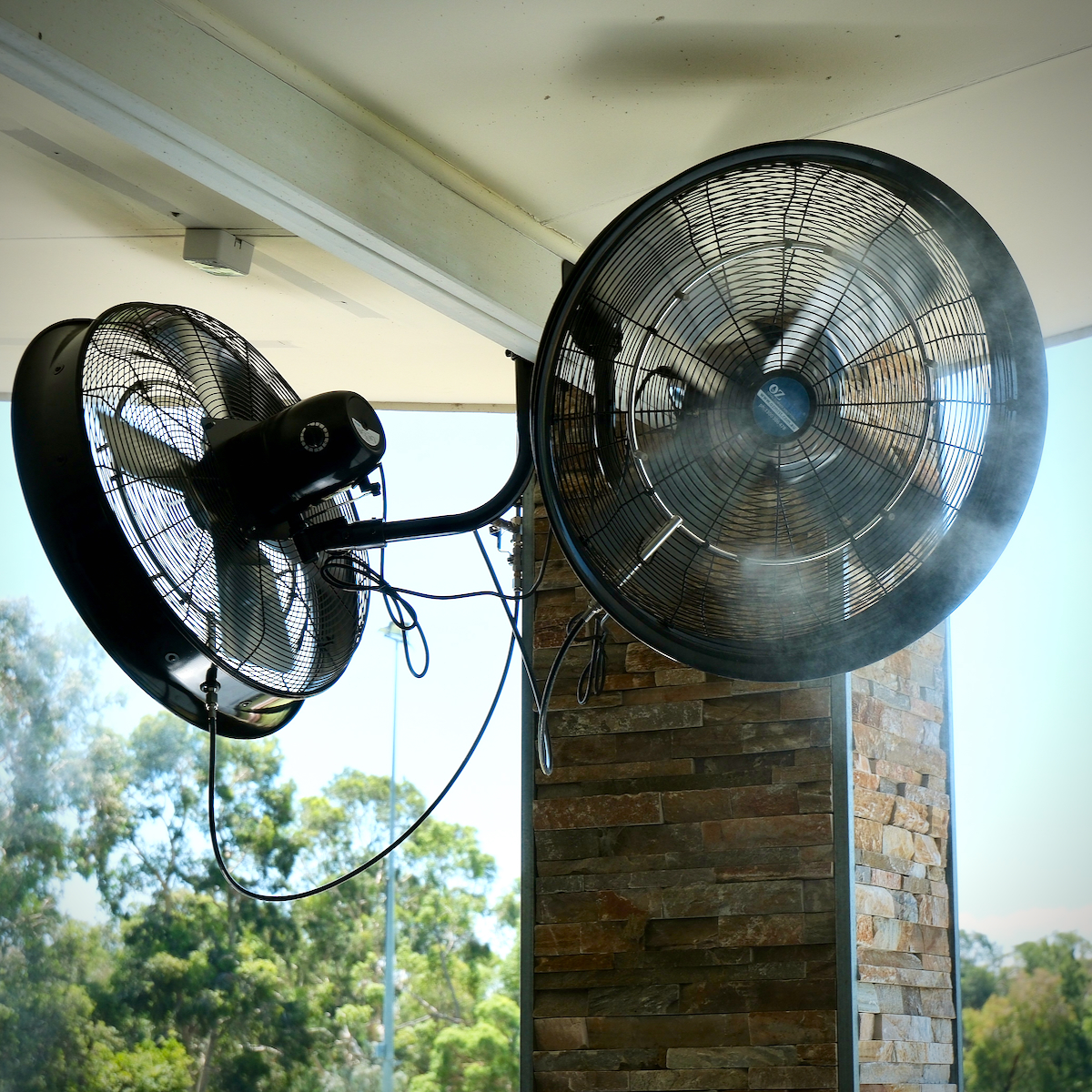

The FSD Outdoor Mist Fans In Action

Whether you’re an event organiser, site manager, OH&S officer, or business owner,
our cooling solutions will help you deliver safer, more enjoyable environments.

Request a quote
