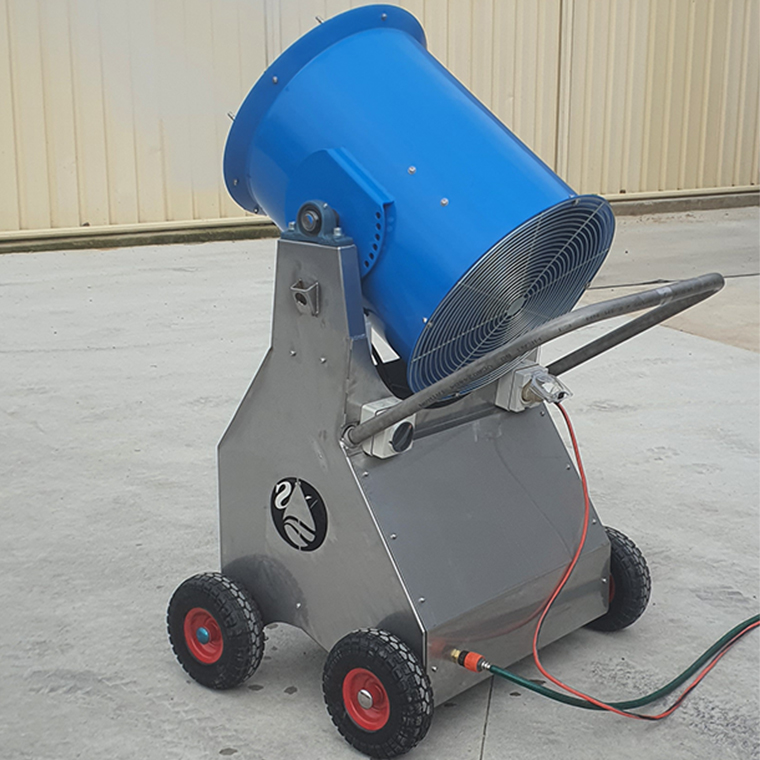

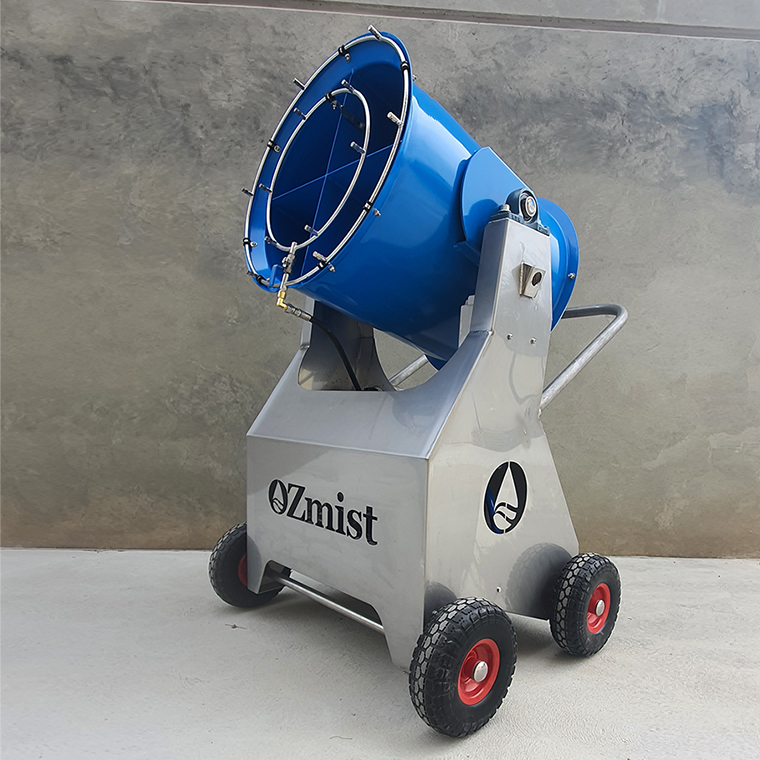

M20AU Fog Cannon

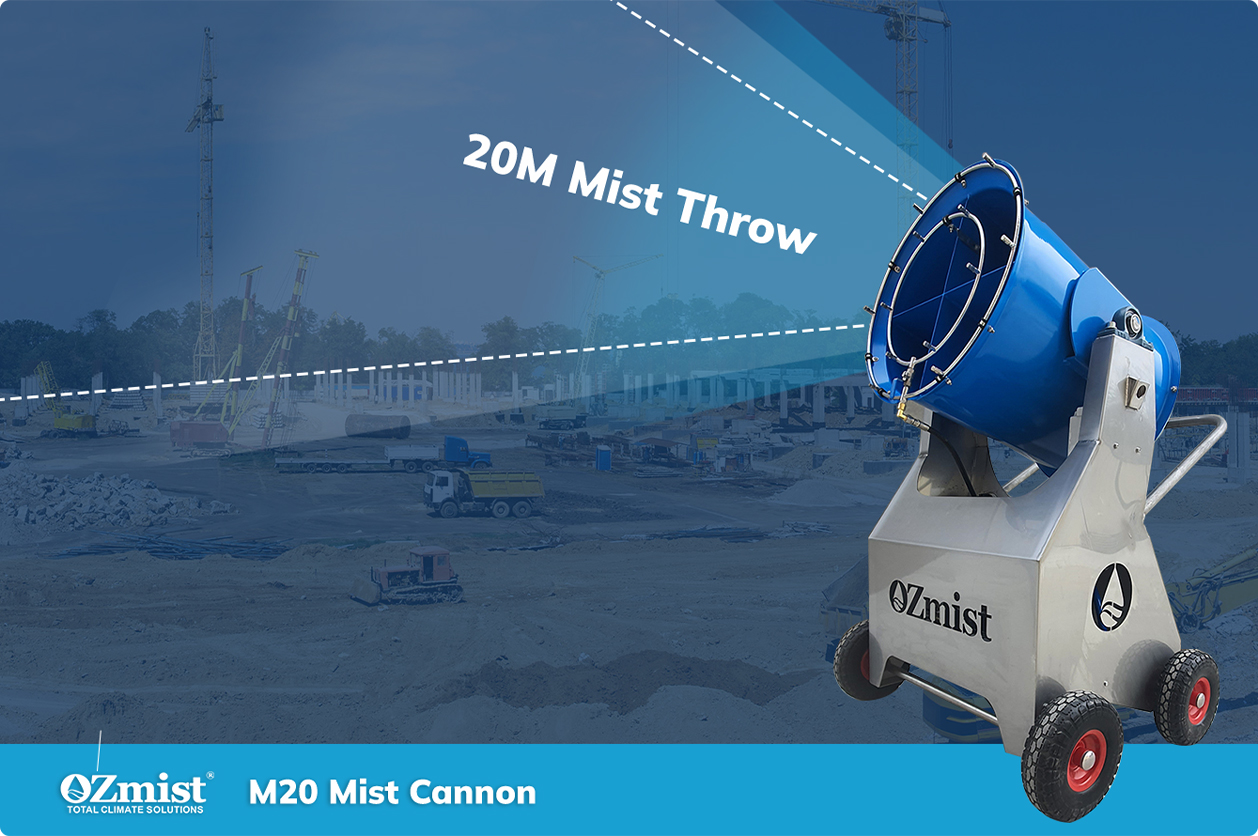

With governments cracking down on Dust Pollution, the M20AU Mist Cannon is a necessity for Mining, Construction, Demolition & Transfer Station worksites. Designed as an all-in-one solution, the high-powered mist cannon has the ability to throw mist up to 20M, suppressing small to medium areas of dust at an extremely fast rate. With its four solid rubber no-flat wheels, the lightweight M20AU can be easily moved and positioned around the site, allowing you to suppress dust in various locations.

The fixed position gives you superior rigidity and the vertical tilt allows you to throw mist at those hard-to-reach spaces. The M20AU is equipped with our High-Pressure Mist Pump that will provide complete consistent Mist Coverage of the working area. The M20AU is the people’s choice when it comes to a cost-effective dust control solution. The M20AU is also a great solution for cooling worksites, as the fine mist can drop the air temperature by 10 degrees.

Back to range

Features

Mist Cannon

  • 20-Meter Mist Throw
  • 15-Amp Power Supply
  • 5L/PM High-Pressure Pump

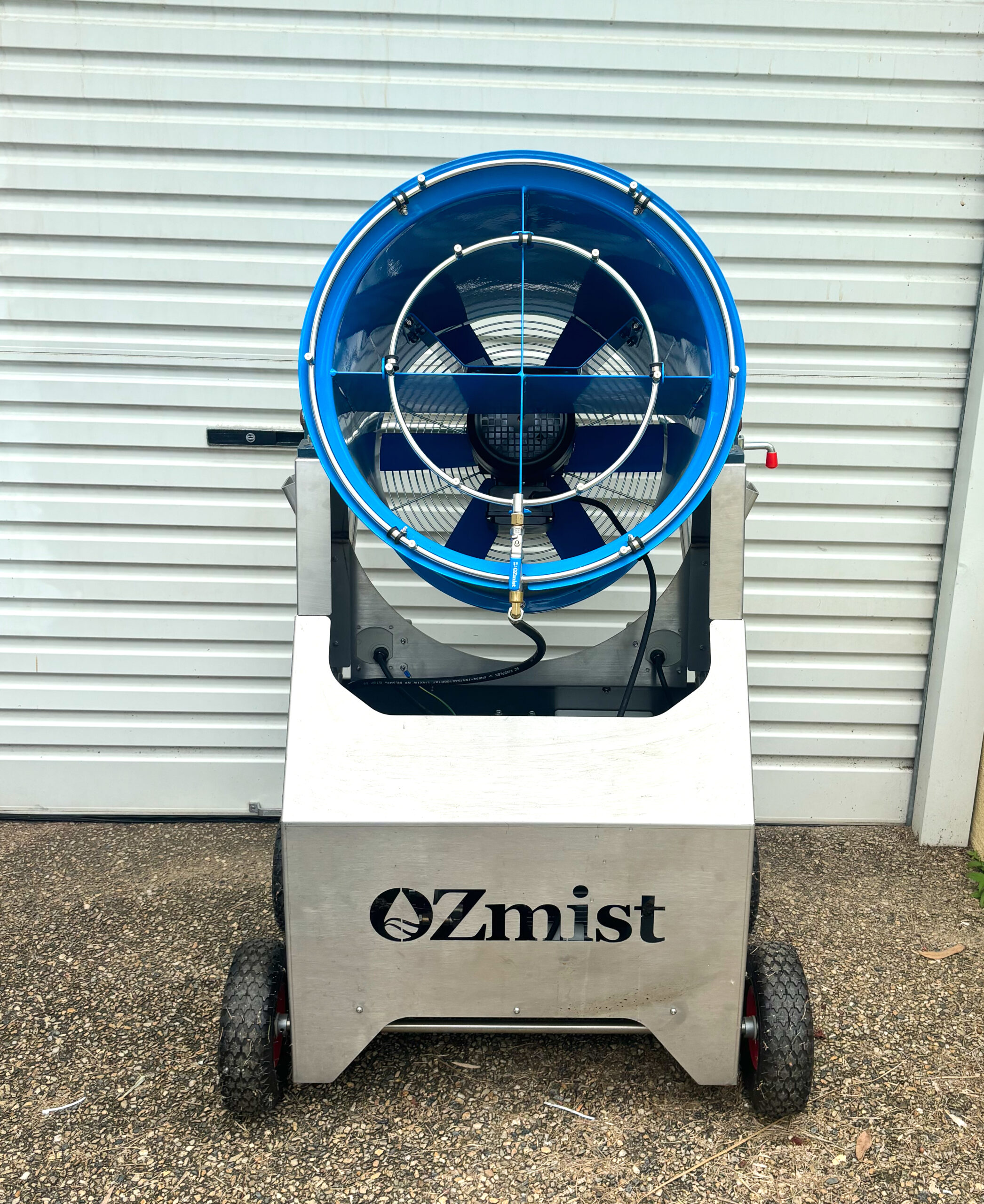

  • 6 or 12 Nozzles / Dual Misting Rings
  • Full Stainless Steel Body
  • Four Solid Rubber No-Flat Wheels
  • Australian Made
  • Simple Operation
  • Compact & Powerful
  • Easily Moved & Positioned

Specifications

Dimensions: 740mm Width: 890mm Height: 1330mm
Water Tank Capacity: Nil
Weight: Dry Weight: 132kg
Flow Rate: 12 Nozzles = 3.69ltr mist per minute. 6 Nozzles = 1.85ltr mist per minute. *Manual Ball valve can shut off half the nozzles. **Nozzle size 0.5mm
Transport: With Four Solid Rubber No-Flat Wheels, fits on a standard 1.2m x 1.2m Pallet.
Generator: For mains connection, requires a 15-Amp Power Supply For off grid, Minimum required generator: 2.5 kVA Recommended generator (with a 30% safety margin): 3.5 – 4 kVA This safety margin helps account for startup surges, voltage drops, and any additional loads you might connect later.
Additional information:

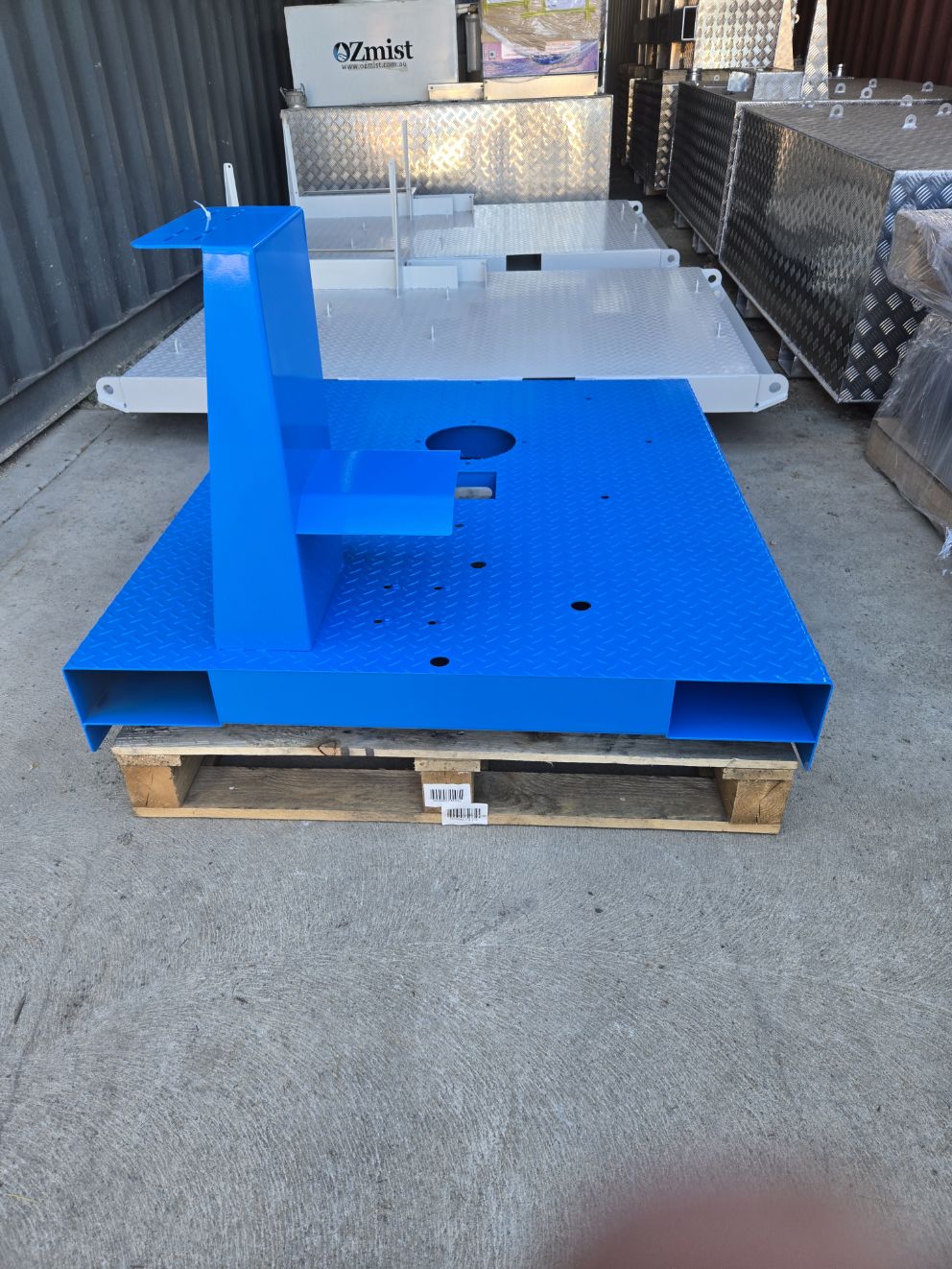

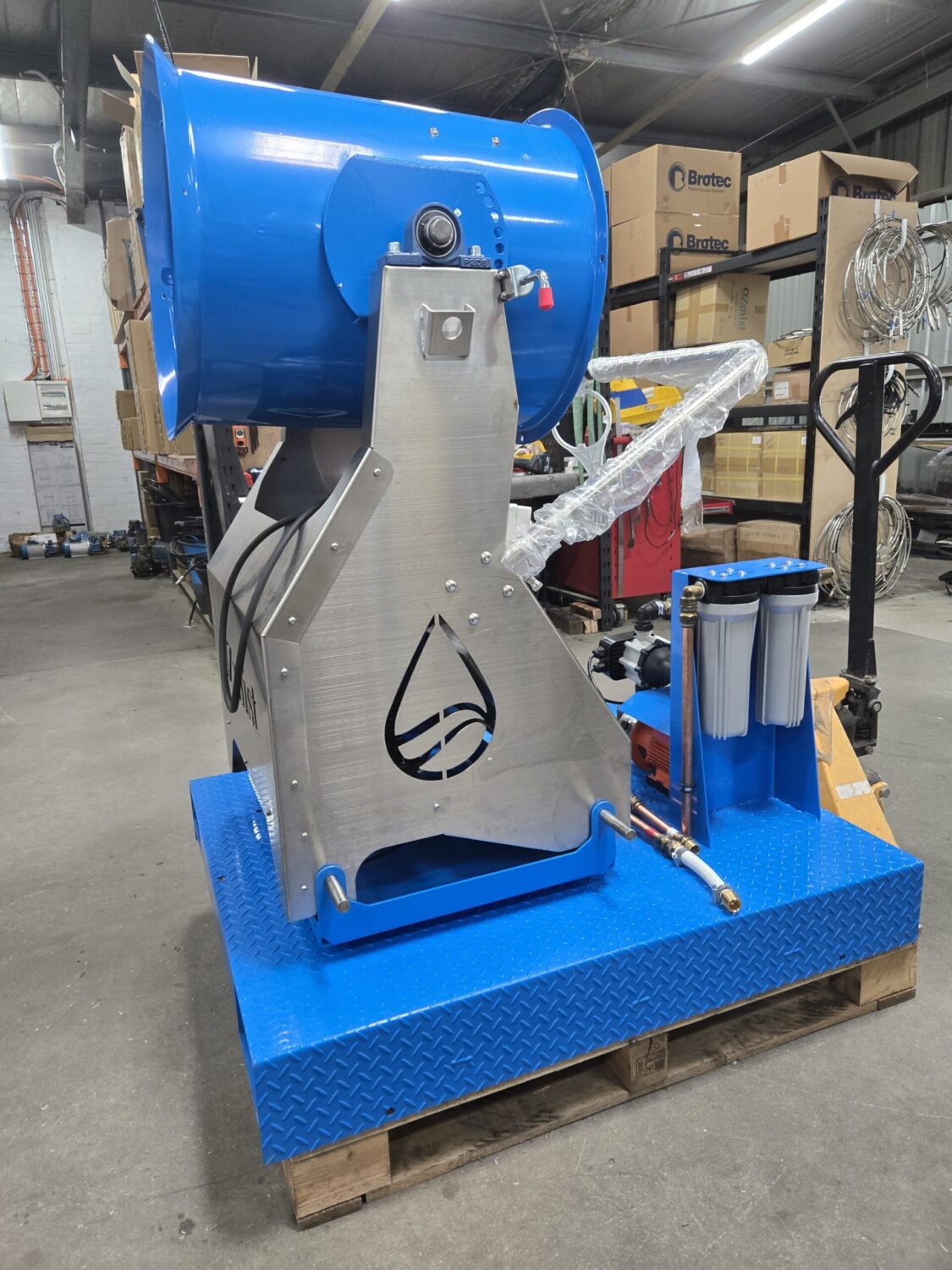

The M20AU easily fits on a standard 1.2m x 1.2m Pallet.

The Fan and Mist can be run separately. If you do not have a water supply connected to the M20AU and the Unit is switched on, you will utilize the Fan Motor only. The Water Pump will remain off until the water is connected. Please make sure that the Unit is switched off when connecting a water supply.

Download brochure
Want to know what the right Fog Cannon is for you? Talk to an expert today and we’ll help you find the perfect solution.
1300 306 478

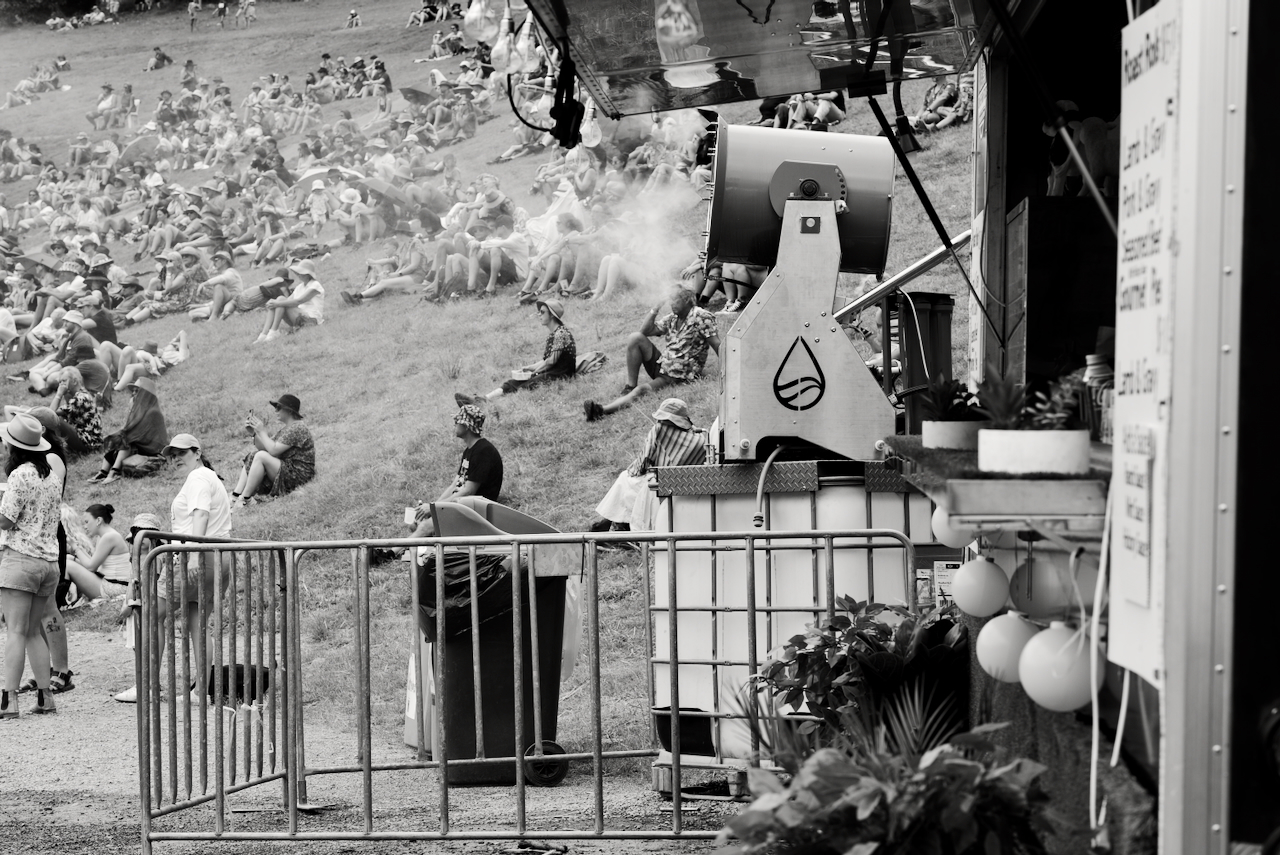

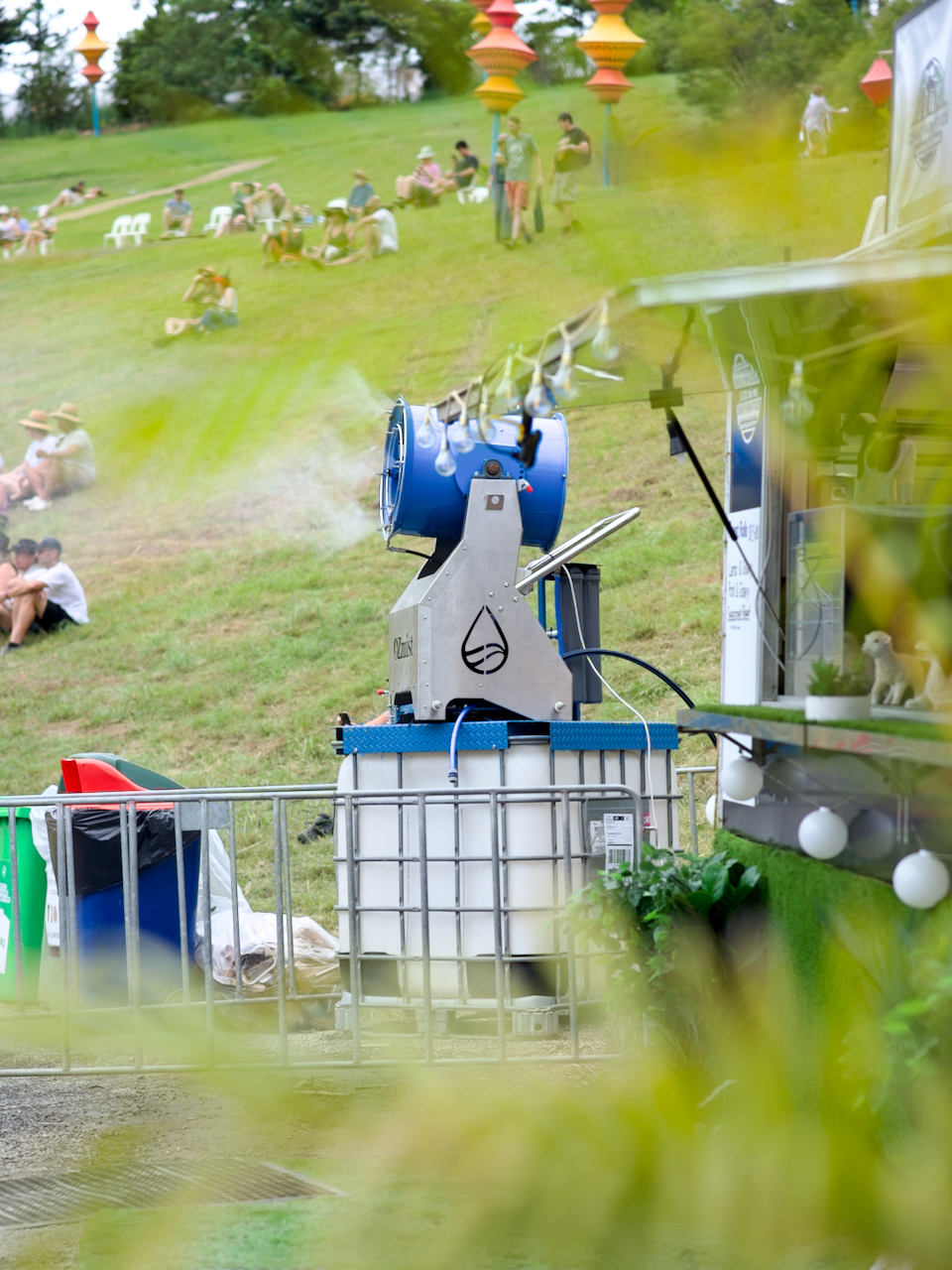

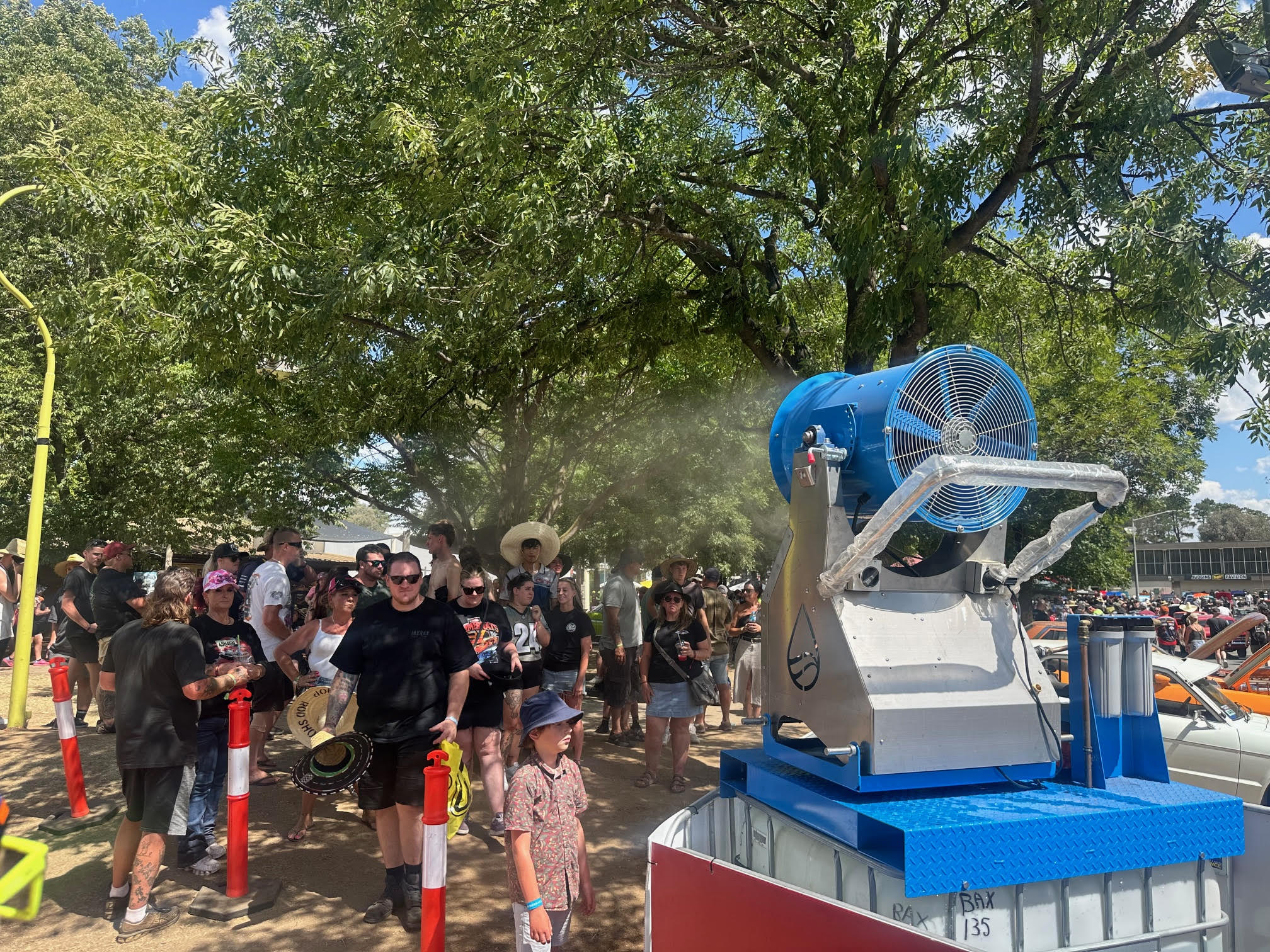

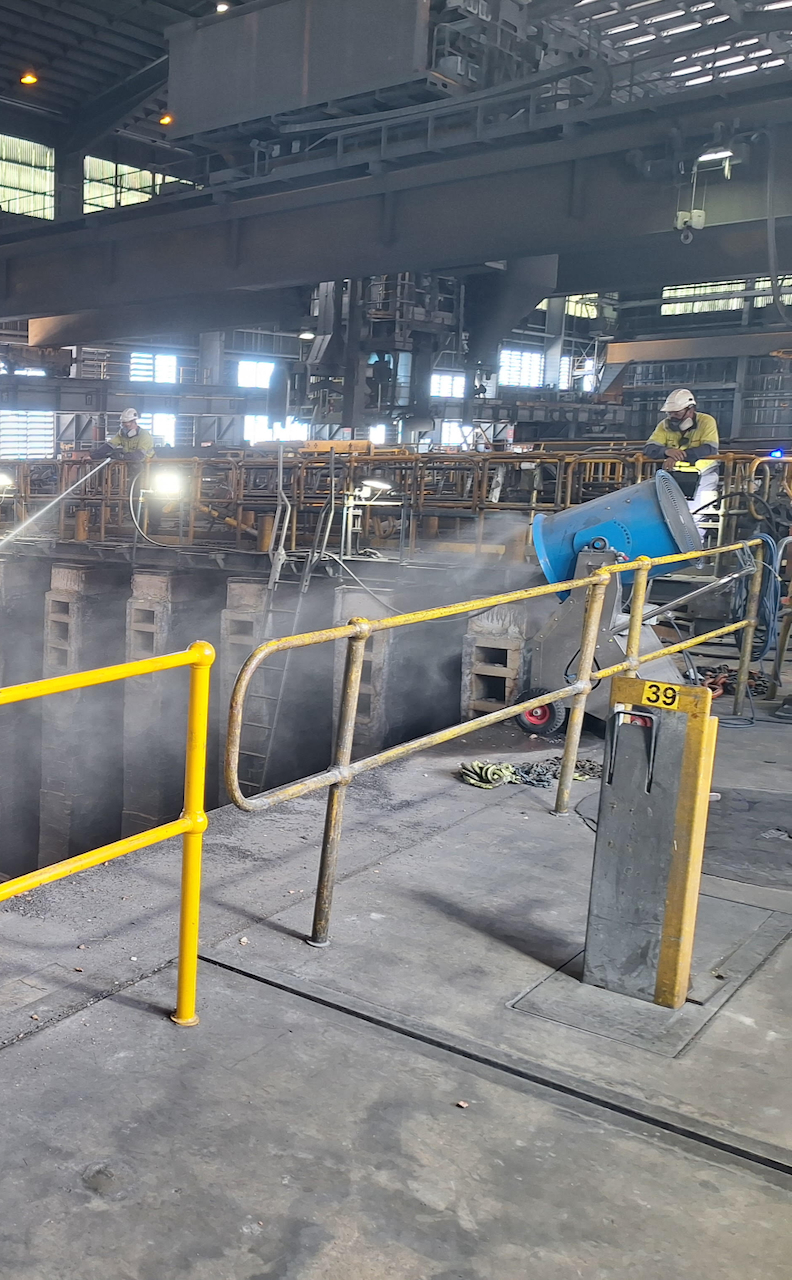

The M20AU Fog Cannon In Action
