Fog Cannon Range

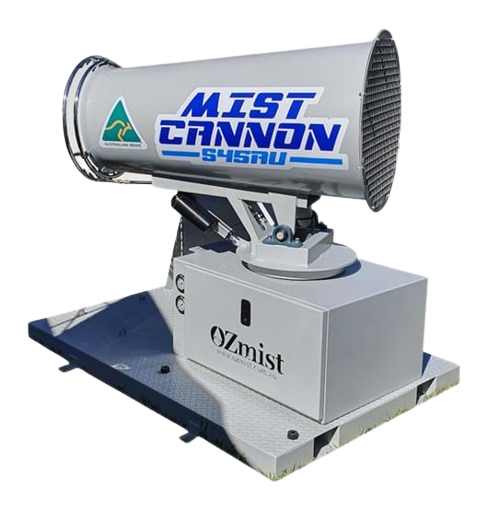

M45AU Fog Cannon

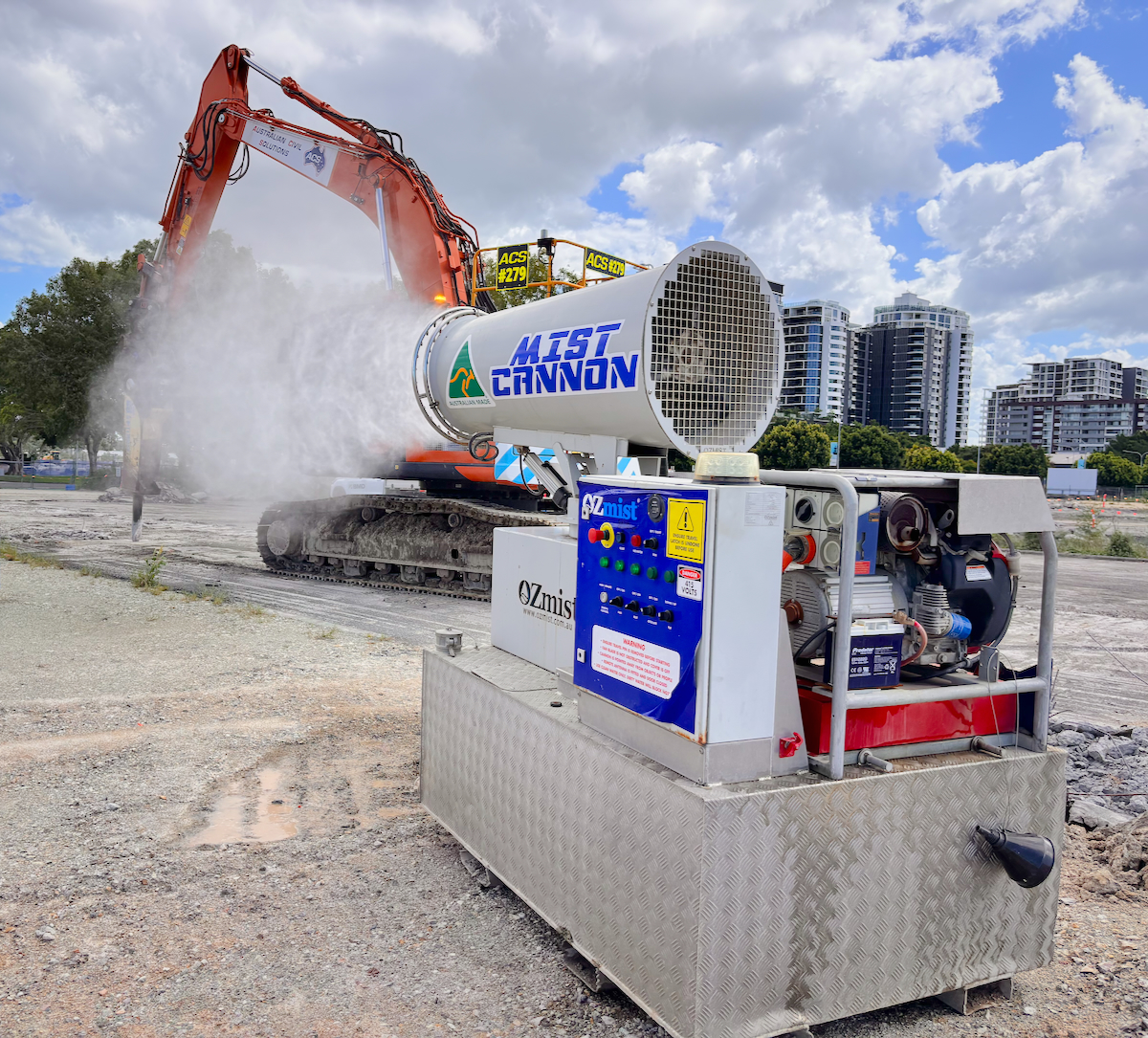

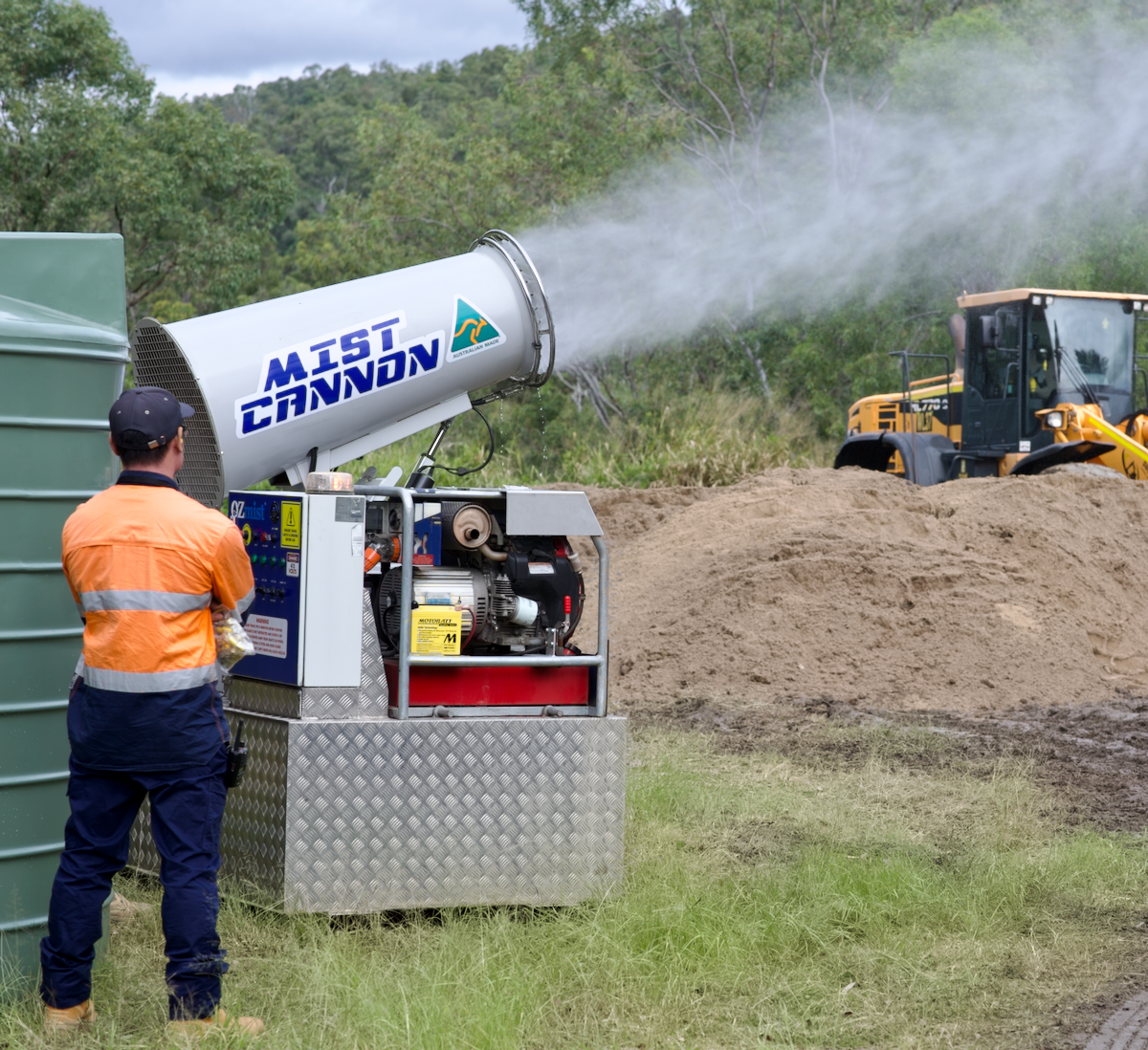

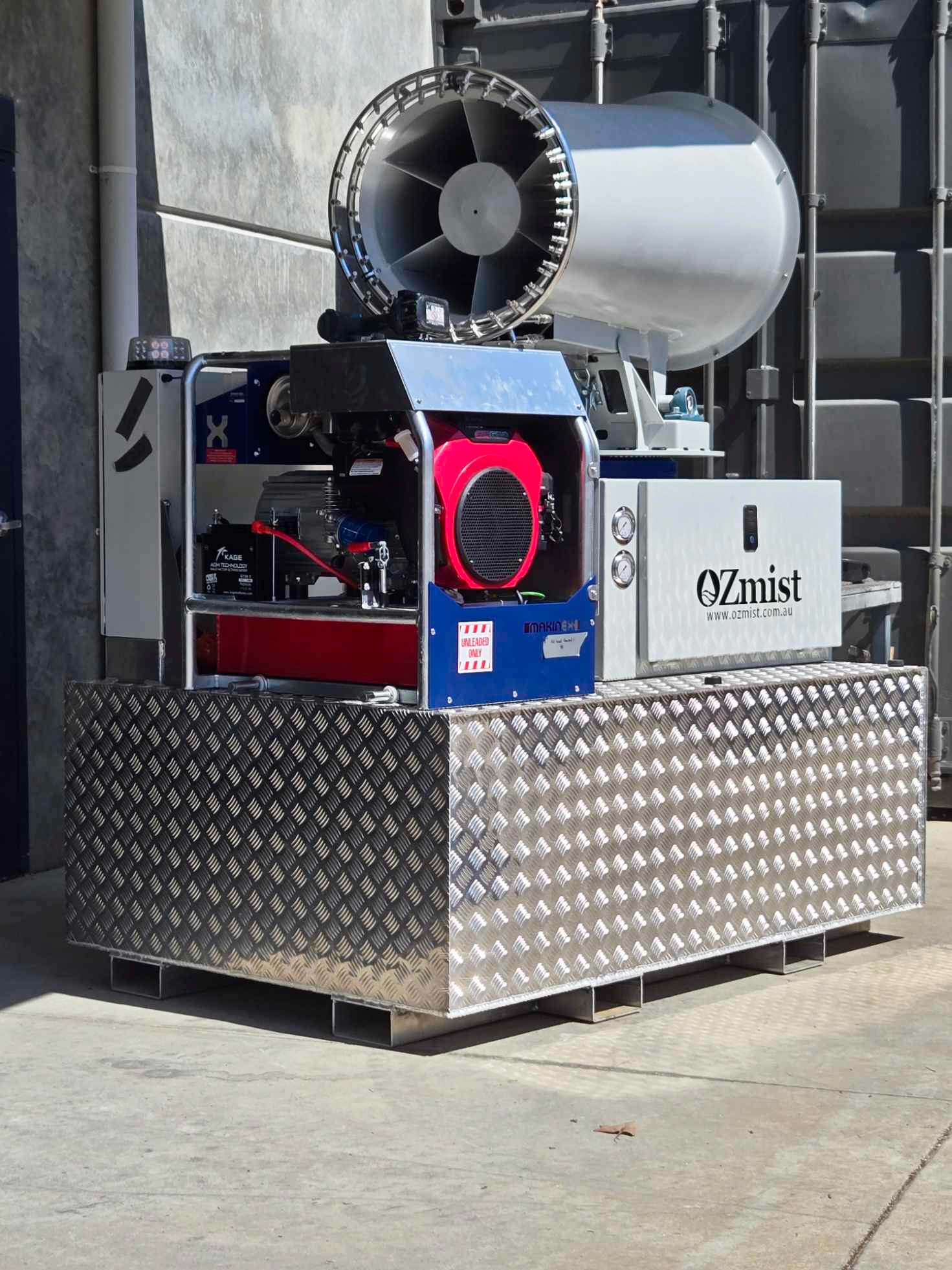

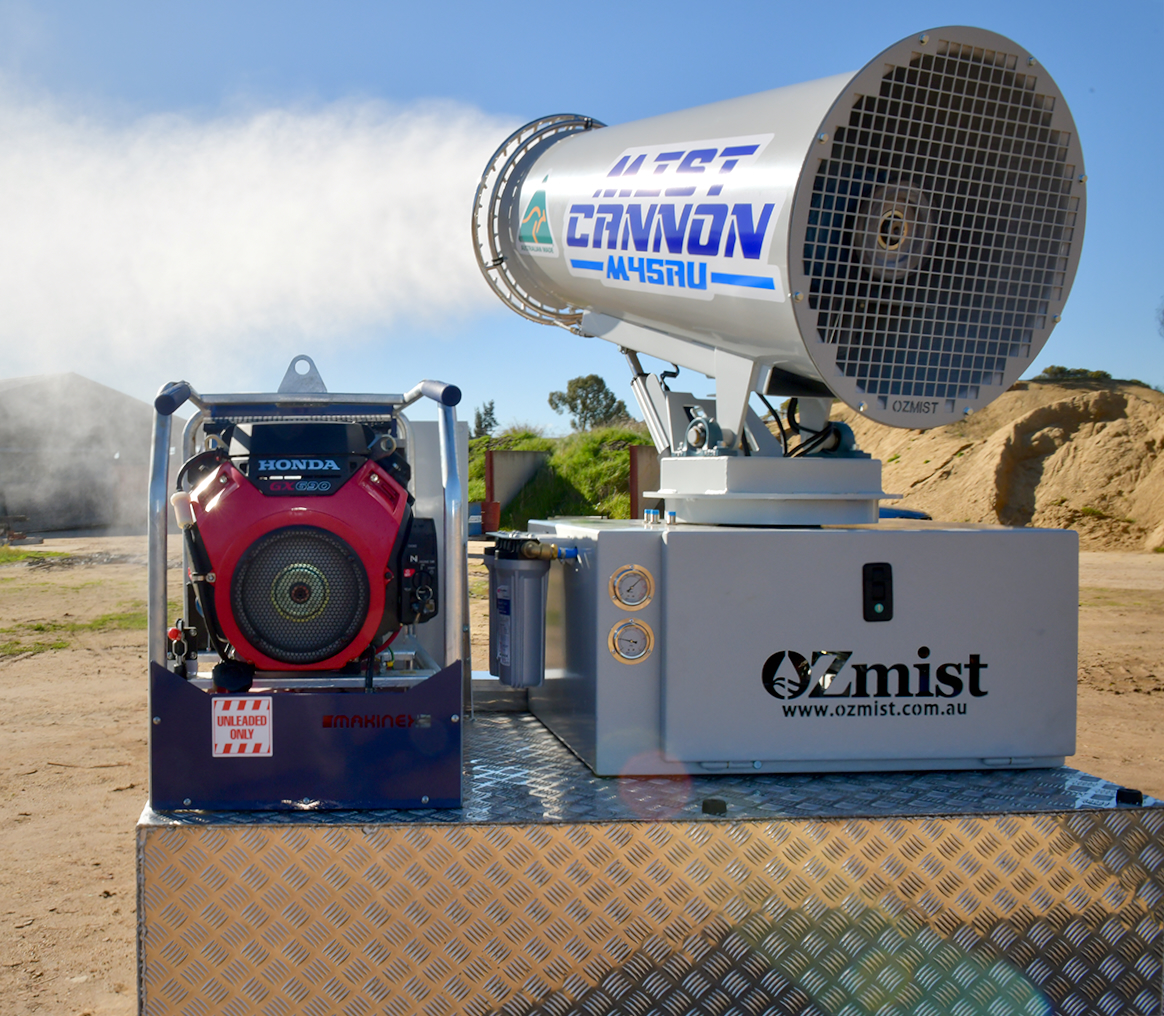

With governments cracking down on Dust Pollution, the M45AU Mist Cannon is a necessity for Mining, Construction, Demolition & Transfer Station worksites. Designed as an all-in-one solution, the high-powered mist cannon has the ability to throw mist up to 45M, suppressing large areas of dust at an extremely fast rate. Positioned on site in a stand alone position or installed on a utility vehicle, the M45AU is built tough, but can be easily moved around site, allowing you to suppress dust in various locations.
The 330 degree oscillation allows you to throw mist in any direction, and can be operated at a safe distance via the wireless remote control. The M45AU is the peoples choice when it comes to a cost-effective dust control solution.
Features
Mist Cannon
- Huge 45-meter throw from the 5.5KW fan motor
- The oscillation from left to right up to 330°
- Electric Actuator lifts fan outlet over 45°
- Double stainless steel misting ring fitted with 60 x high precision, ultra-fine mist nozzles
- Upgraded Proximity Sensors replace the original mechanical switches
Electrical
- 3 phase and 12v. contained within the water and dustproof enclosure fitted to the rear of the tank
- Fully functioned Remote Control with 100m range
- Can be controlled from the panel at the rear of the tank
Water Tank
- 1200 litres capacity
- Fabricated from 3mm aluminium checker plate sheet
- Internal baffle plates
- 3” Camlock inlet, 2” drain outlet
- Internal power cabling from front to back
High Pressure Pump
- An OZmist 18L/PM 3 phase industrial mist pump pressurizes the tank water to 1,000PSI
- The mist pump requires minimal servicing and is fitted to slide rails behind a hinged door below the fan
- The mist pump is supplied water by a DAB transfer pump
- A water Inlet and Outlet gauge is fitted up high
- Twin water filters are located at the rear of the trailer
- Filters are easily sourced and changed when required
- Further filtration is provided by way of a mesh screen filter which can be back washed and easily accessed
- Internal low water level float stops the mist pump and illuminates a warning light until water is added
Specifications
Generator:
- Power draw 15.5kW
- Can be supplied with or without generator
- 16kVA Honda/Makinex Electric Start Generator
- 1 x 32A 3-Phase Port
- 2 x 240V 15A Ports
The M45AU is fitted with Tyne Channels that are 160mm Wide and 70mm Tall to suit small to medium sized Forklifts.The M45AU requires periodical servicing, the Oil should be changed after the first 50 Hours of operation and then after every 250 hours. The Water Filters should also be checked periodically to ensure that there are no dirt buildup.
