Portable Cooling Technology for Domestic Solutions
An OZmist PatioMist fan is a great choice as an entry level mist fan, providing cooling benefits far beyond conventional fans alone. Evaporative cooling creates a very fine mist & our fans powerful circulation delivers a cool breeze & lifestyle where you need it most!

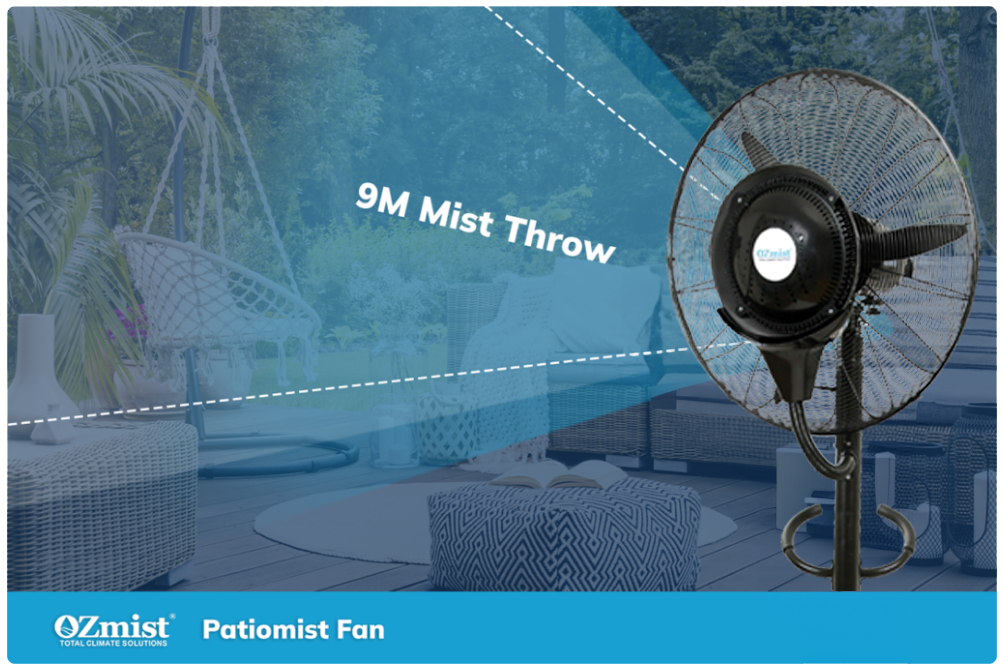

PatioMist’s feature a 650mm diameter fan, own water tank and built-in pump capable of throwing cool refreshing air over 9 meters! These are a great budget option for an undercover home entertaining area, business space, workshop or shed.
Excessive heat impacts comfort, physical safety and mental wellbeing, so bring a much cooler change this summer to your family, friends, workers, & animals too!
By introducing an OZmist system into your space, you’ll see the range of applications available and difference flash evaporative cooling makes.
Speak to our team about which heat management option would work best for your environment and budget. Options include our domestic PatioMist fan, PortaMist mk2 , KTW outdoor commercial fans, or range of industrial fans for factories and workshops!
We also hire & sell our CanCool units which are used extensively in small or large events, music festivals, sports venues etc.
Key Features
| Mist Throw | |||
|---|---|---|---|
|
Mist Throw |
9M |
Mobility |
Easy to move (Portable Model) |
|
Oscillation |
On/Off Control |
Pump |
Submersible 240v Electric Pump |
|
Water tank |
70L Portable |
Mounting
Unit |
Sturdy Frame with Lockable Castor Wheel |
Key Features
| Mist Throw | |||
|---|---|---|---|
|
Mist Throw |
9M |
Mobility |
Easy to move (Portable Model) |
|
Oscillation |
On/Off Control |
Pump |
Submersible 240v Electric Pump |
|
Water tank |
70L Portable/ 8L Wall Mount |
Mounting
Unit |
Sturdy Frame with Lockable Castor Wheel |

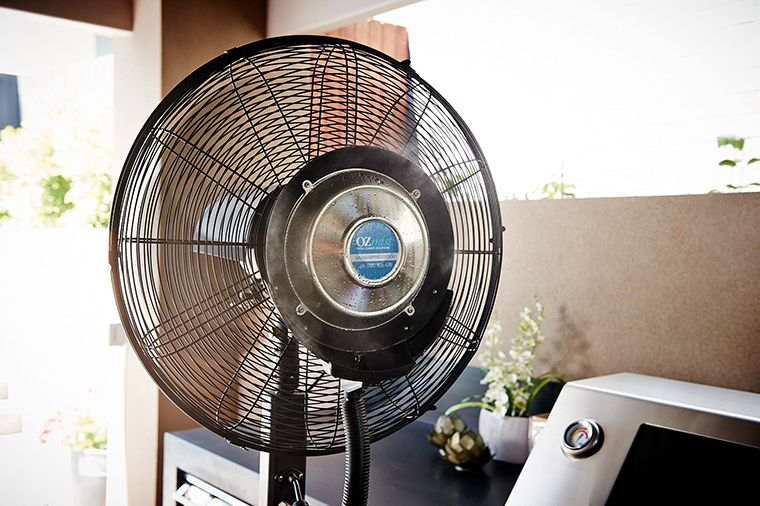

These do not need a high-pressure pump module to create the very fine mist required for fast and efficient cooling. Instead, they use water pumped from the attached storage tank onto a stainless steel disc that spins at very high speeds.
Perfect for hot summer days, these OZmist PatioMist cooling fans create millions of very fine droplets that are blown away from the fan to create a cool refreshing breeze.

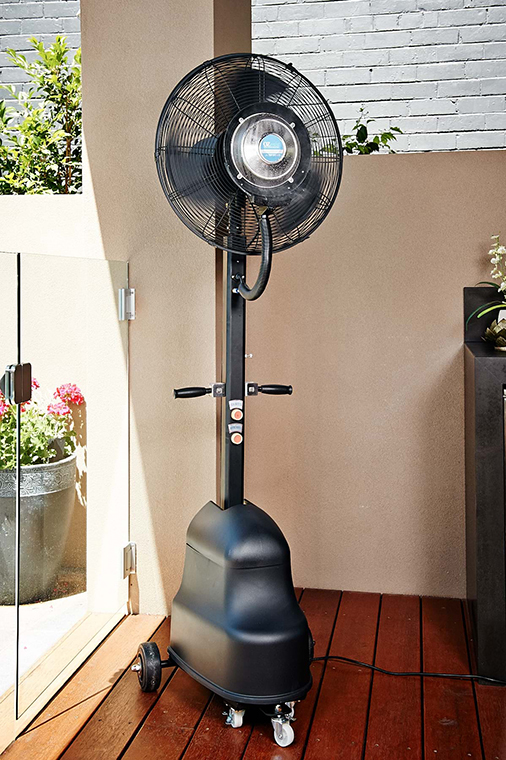

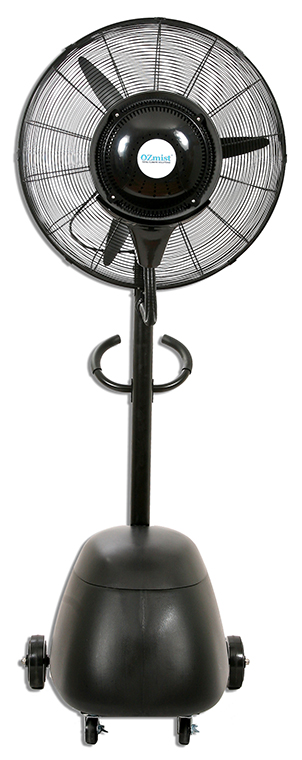

A 70-litre plastic water tank is fixed to the sturdy steel frame and contains enough for around 8 hours of operation. The Pedestal (Portable) fan unit has castors fitted to a sturdy steel frame making it stable and easy to move. Simply connect to a power supply and wheel around the yard or workshop.
The Patiomist Portable runs from a single 240v 10A 3-Pin Power Plug
The way that Mist Cooling works you will not see any benefits to adding ice to the water tank. Cooling happens as the Mist is projected out of the fan and “flash-evaporates” as it contacts the warm air, this causes the hot air to dissipate and leave cool air in its place
| Dimensions |
|---|
|
Dimensions |
|
Height: 1,700mm Width: 700mm (Water Tank Width) Width: 750mm (Fan Head Width) 2,500mm Long Power Cable |
|
Water Tank Capacity: |
|
70 Litres
|
|
Weight: |
|
Dry Weight: 42kg Wet Weight: 120kg approx |
| Dimensions |
|---|
|
Flow Rate: |
|
N/A
|
|
Transport: |
|
Castors Fitted to a Sturdy Steel Frame
|
|
Generator: |
|
240 volt, 50 Hz, .4KW combined power usage
|
The Patiomist Portable offers an affordable misting solution at home without the need to run an expensive high-pressure misting pump, the Patiomist Portable is easy to set up out of the box and will provide efficient and effective cooling for your home space.
With variable fan speeds and the ability to oscillate left and right these fans will keep you cool throughout the warmest months
|
Used For Indoor & Outdoor Areas |
Mist Throw 8-12m |
|---|---|
|
Tank Size 50L |
Mobility Portable |
|
Used For Outdoor areas |
Mist Throw 8-10m |
|---|---|
|
Tank Size N/A |
Mobility Fixed |
From a clients perspective, dealing with a local Australian based manufacturer, means having quality products, direct communication, knowhow, support, service parts, hire units & backup available, so operations run smoothly, safely and without delays.
Cooling: Our high pressure misting solutions are made from the highest quality components and effective Australia wide. As pioneers, manufacturers & experts in misting delivery, we’ve developed and built solutions which are used across the country cooling hospitality & live music venues, major festivals, sports clubs & events, theme parks year round, schools, factories, livestock, zoo’s etc etc.
Industrial Misting: Our misting systems are incredibly effective in controlling fugitive dust, airborne particles, pungent odours etc found in heavy industries, quarries, waste and recycling plants, worksites, construction projects etc.
From our team, we’re dedicated to providing our clients the best possible outcome with proven ongoing results. This is what keeps driving OZmist.
