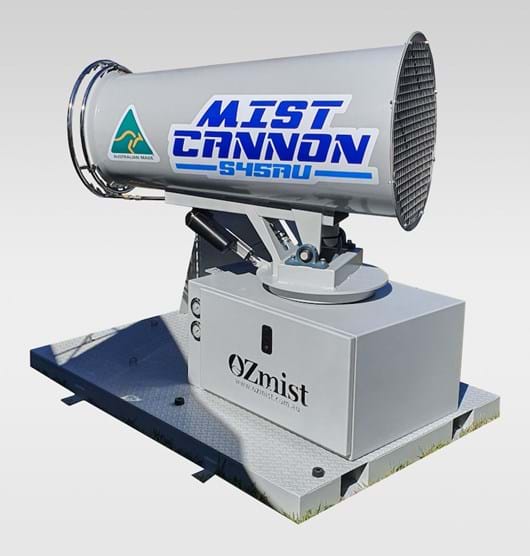

OZmist’s S45 is our most compact 45m cannon, ideal for flatbeds or with worksite infrastructure.
S45AU Mist Cannons powerful, high-speed fan, projects a cloud of targeted mist (pressurised water) into the air.
The fine mist covers a large aerial surface area, attaching itself to the fugitive dust particles to prevent them from being dispersed around your site. The misting technology also cools worksites, dropping the air temperature by up to 10 degrees.
Key Features
| Mist Throw | |||
|---|---|---|---|
|
Mist Throw |
45M |
Mobility |
Forklift Accessible |
|
Oscillation |
330 degrees |
Pump |
18L/PM 3 phase - 1000psi |
|
Water tank |
No Water Tank |
Mounting
Unit |
Flatbed Truck |
Key Features
| Mist Throw | |||
|---|---|---|---|
|
Mist Throw |
45M |
Mobility |
Forklift Accessible |
|
Oscillation |
330 degrees |
Pump |
18L/PM 3 phase - 1000psi |
|
Water tank |
No Water Tank |
Mounting
Unit |
Flatbed Truck |

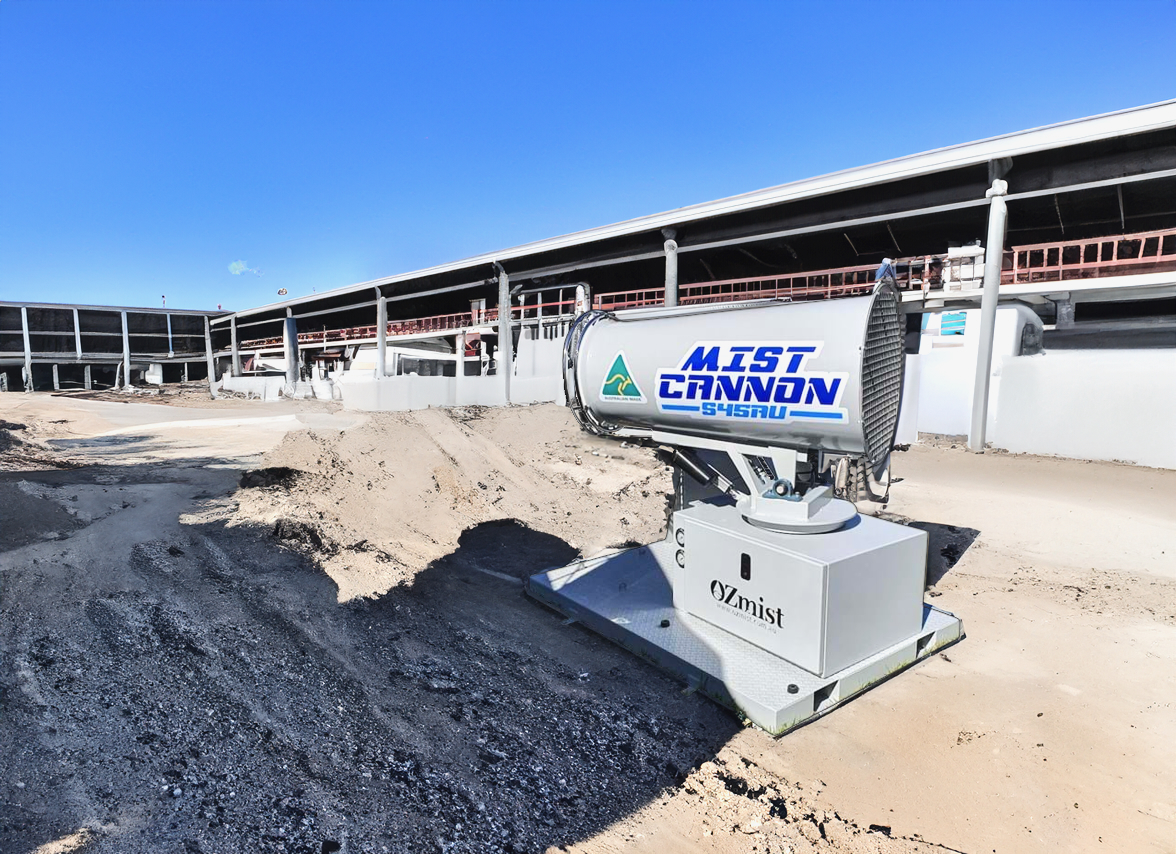

With governments cracking down on Dust Pollution, the S45AU Mist Cannon is a necessity for Mining, Construction, Demolition & Transfer Station worksites. Designed as an all-in-one solution, the high-powered mist cannon has the ability to throw mist up to 45M, suppressing large areas of dust at an extremely fast rate. Mounted on a flatbed truck the S45AU is built tough but can be easily moved around the site, allowing you to suppress dust in various locations.
The 340-degree oscillation allows you to throw mist in any direction and can be operated at a safe distance via the wireless remote control. The S45AU is the people’s choice when it comes to a cost-effective dust control solution. The S45AU is also a great solution for cooling worksites, as the fine mist can drop the air temperature by 10 degrees.
The Mist Pump that is fitted to the S45AU Unit requires a constant water supply of 25psi – 55psi (170kpa – 380kpa). OZmist have a Transfer Pump that is available for purchase with the unit for this purpose.
No, the S45AU is a versatile machine that can be positioned on any flat surface. The S45AU has Forklift access on both short sides of the machine, making it easy to pickup and move when necessary.
| Dimensions |
|---|
|
Dimensions |
|
Length: 1900mm
Width: 1200mm
Height: 1800mm |
|
Water Tank Capacity: |
|
nil |
|
Weight: |
|
(Dry Weight plus Generator) Dry Weight: 580kg |
| Dimensions |
|---|
|
Flow Rate: |
|
18 L/min of Mist per minute |
|
Transport: |
|
The bed is fitted with Fork interface on the short edge.
With anchor points on each long edge.
|
|
Generator: |
|
16kVA Honda/Makinex Electric Start Generator 1 x 32A 3-Phase Port 2 x 240V 15A Ports |
Our worksite dust suppression cannons are an extremely effective way of controlling fugitive dust. The high pressure directed fog can be thrown up to 45m to capture and subdue dust particles that are already airborne. Our solutions can be fixed to target specific dust points with automated rotation to prevent dust emissions and contain it at the source.
|
Used For Medium To Large Site |
Mist Throw 45M |
|---|---|
|
Tank Size 2000 litres |
Mobility Fixed |
|
Used For Small To Med Site |
Mist Throw 20M |
|---|---|
|
Tank Size Direct Connection to water source |
Mobility Fully Mobile |
|
Used For Large Site |
Mist Throw 45M |
|---|---|
|
Tank Size 1200 litres |
Mobility Fully Mobile |
